Home > products > TFT LCD With CTP > 6.9 Inch 280x1424 Resolution TFT LCD With CTP Touch Panel Bar Type 400 Luminance

6.9 Inch 280x1424 Resolution TFT LCD With CTP Touch Panel Bar Type 400 Luminance

Product Details

Place of Origin: GUA,CN

Brand Name: LCD Mall

Certification: CE ISO9001 ROHS

Model Number: LMT069FH001C-FC002

Payment & Shipping Terms

Minimum Order Quantity: 500pcs

Packaging Details: International standard export packing

Delivery Time: 2~4 weeks

Payment Terms: T/T;Western Union;Paypal;L/C

Supply Ability: 100000pcs/month

Get Best Price
Highlight:

280x1424 Resolution 4l interface medical tft lcd

,

400 Luminance 4l interface medical tft lcd

,

4l interface medical tft lcd 400 Luminance

Type:
TFT
Display Size:
6.9inch
Supplier Type:
Manufacturer
LCD Type:
TFT LCD Display
Viewing Direction:
All/IPS
Interface:
RGB
Outline Dimension:
46.20*199.00*4.80mm
Active Area:
33.60*170.88mm
Operating Temperature:
-20~70°C
Luminance:
400 Luminance
Storage Temperature:
-20°C~+70°C
Resolution:
280*1424
Display Type:
FHD TFT Display
Port:
Shenzhen
Type:
TFT
Display Size:
6.9inch
Supplier Type:
Manufacturer
LCD Type:
TFT LCD Display
Viewing Direction:
All/IPS
Interface:
RGB
Outline Dimension:
46.20*199.00*4.80mm
Active Area:
33.60*170.88mm
Operating Temperature:
-20~70°C
Luminance:
400 Luminance
Storage Temperature:
-20°C~+70°C
Resolution:
280*1424
Display Type:
FHD TFT Display
Port:
Shenzhen

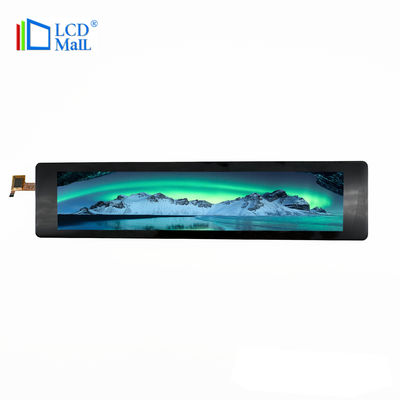

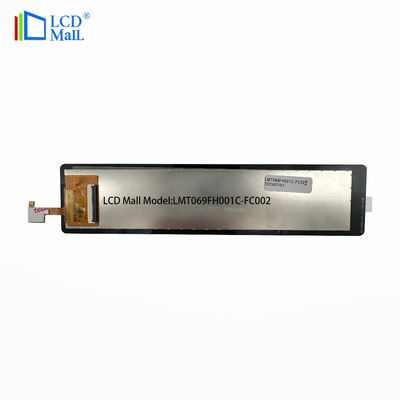

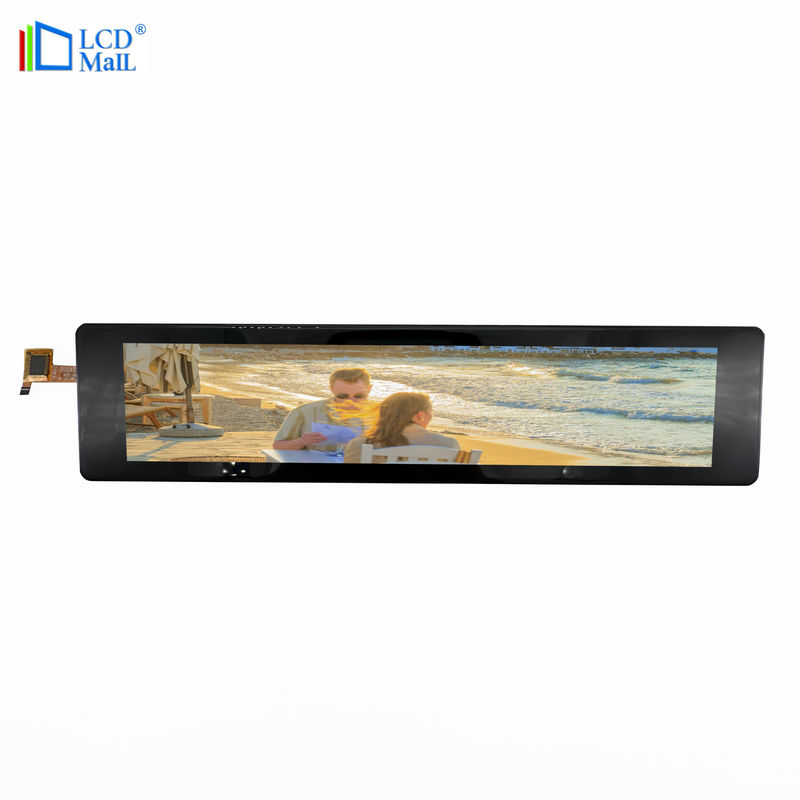

6.9 Inch 280x1424 Resolution TFT LCD With CTP Touch Panel Bar Type 400 Luminance

6.9 inch 280x1424 TFT LCD display module bar type lcd display CTP touch screen panel

Product Description


The 6.9-inch 280x1424 TFT LCD display module is a bar-type LCD that offers a high-resolution display with excellent image quality and touchscreen functionality.

The display module features a diagonal measurement of 6.9 inches, providing ample space for displaying content such as videos, images, and graphics. The 280x1424 resolution offers a pixel density that ensures a sharp and clear image quality, making it suitable for detailed content and enhancing the user experience.

Integrated into the display module is a capacitive touchscreen panel (CTP), which offers accurate and responsive touchscreen functionality. This allows users to interact with the display through various touch gestures such as swiping, tapping, and pinching, enhancing the user experience and enabling intuitive navigation and control.

The bar-type design of the display module offers a sleek and compact form factor, making it suitable for use in a range of devices and systems. It can be seamlessly integrated into consumer electronics products, medical equipment, industrial control systems, and other applications that require a high-quality visual interface.

The display module offers excellent all-viewing-angle visibility, ensuring that the displayed content is visible and legible from various perspectives. This provides flexibility in terms of viewing position and allows the display to be viewed comfortably from various angles.

The 6.9-inch 280x1424 TFT LCD display module with capacitive touchscreen functionality offers an advanced visual solution for a range of demanding applications that require a high-resolution display with accurate touchscreen interaction.

Spec:


Product Name
6.9 inch TFT LCD display module bar type lcd display panel
Resolution
280(horizontal)*1424(Vertical)
Viewing Direction
All/IPS
Surface Luminance
400
Interface

RGB
Backlight
8 chip white LED, 2S4P
Outline Dimension
46.20*199.00*4.80mm
Viewing Area
33.60*170.88mm

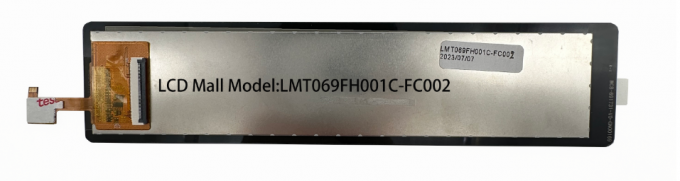

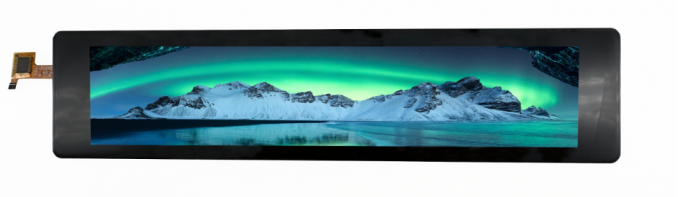

6.9 Inch 280x1424 Resolution TFT LCD With CTP Touch Panel Bar Type 400 Luminance 0
6.9 Inch 280x1424 Resolution TFT LCD With CTP Touch Panel Bar Type 400 Luminance 1
Product Applications


The 6.9-inch 280x1424 TFT LCD display module with capacitive touchscreen panel has a wide range of potential applications, including but not limited to:

  1. Mobile Devices: The display module can be used in smartphones, tablets, and other mobile devices. It provides a high-resolution display for web browsing, reading emails, watching videos, and playing games.
  2. Automobiles: The module can be integrated into car dashboards for displaying information such as maps, GPS data, and vehicle status. It also offers touchscreen functionality for controlling audio systems, air conditioning, and other vehicle features.
  3. Industrial Applications: The display module can be used in industrial automation systems, machine controls, and process monitoring equipment. It provides a robust and reliable display for critical information such as production data, process parameters, and alarms.
  4. Retail Displays: The module can be employed in digital signage systems, electronic price tags, and product showcases. It allows for dynamic content updates and offers a sleek visual interface to showcase product information, promotions, and marketing messages in retail environments.
  5. Medical Equipment: The display module can be used in medical devices such as patient monitors, surgical instruments, and diagnostic machines. It provides a clear and legible display for vital signs, test results, and other essential medical information.
  6. Consumer Electronics: The module can be incorporated into a range of consumer electronics products such as e-readers, digital cameras, and video players. It offers a high-resolution display for viewing content and executing applications.

The 6.9-inch 280x1424 TFT LCD display module with capacitive touchscreen panel is suitable for a variety of demanding applications that require a high-resolution display with responsive touchscreen interaction.

Packing and Shipping:

Packaging and Shipping for TFT LCD Display

Our TFT LCD displays are carefully packaged to ensure safe delivery to our customers. We use high-quality packaging materials to protect the displays from any damage during transportation. Each display is individually packed and labeled with its model number for easy identification.

For domestic shipping, we use reliable courier services to deliver the displays to our customers. The displays are usually shipped within 2-3 business days of receiving the order. We also offer expedited shipping options for urgent orders.

For international shipping, we work with trusted shipping companies to deliver the displays to our customers. The displays are shipped in compliance with all international shipping regulations and customs requirements. Delivery times may vary depending on the destination country.

Upon receiving the displays, we recommend our customers to carefully inspect the packaging for any signs of damage before accepting the delivery. In case of any damage, please contact our customer service team immediately for assistance.

We are committed to providing the best packaging and shipping services to ensure that our TFT LCD displays reach our customers in perfect condition. If you have any further questions or concerns regarding our packaging and shipping, please don't hesitate to contact us.

FAQ:

  • Q: What is the brand name of this product?
    A: The brand name of this product is LCD Mall.
  • Q: Where is this product manufactured?
    A: This product is manufactured in GUA, CN (Guangdong, China).
  • Q: What certifications does this product have?
    A: This product is certified with ISO9000, CE, and ROHS.
  • Q: What is the minimum order quantity for this product?
    A: The minimum order quantity for this product is 1 piece.
  • Q: How is this product packaged?
    A: This product is packaged in international standard packaging.
  • Q: What is the average delivery time for this product?
    A: The average delivery time for this product is 2~5 weeks.
  • Q: What payment methods are accepted for this product?
    A: The accepted payment methods for this product are T/T, West Union, credit, and Paypal.
  • Q: What is the supply ability for this product?
    A: The supply ability for this product is 1000000 pieces per month.
