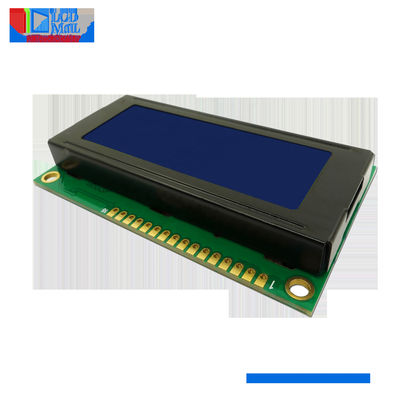

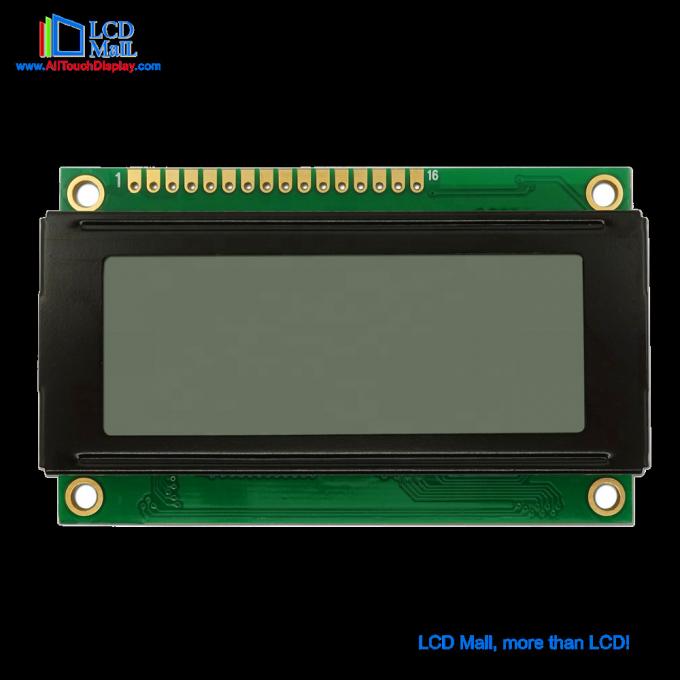

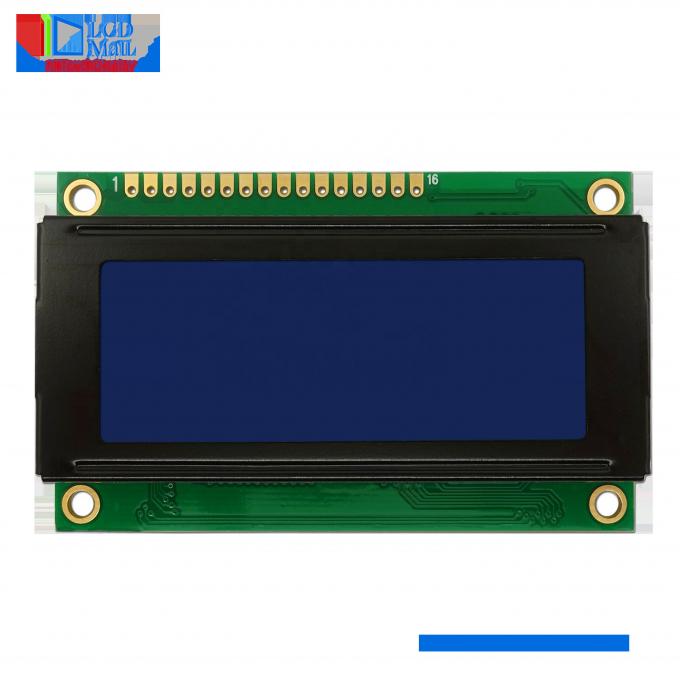

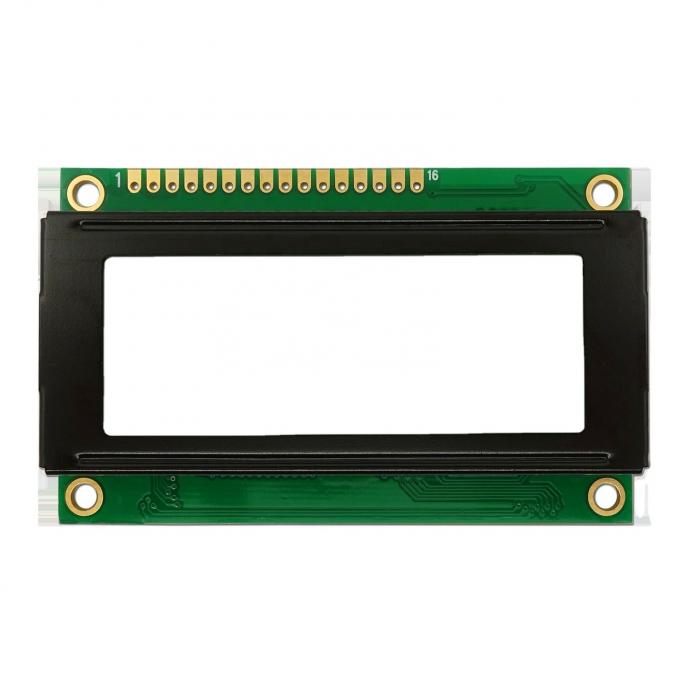

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface

Name: LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface
Brand: LCD Mall
SKU: LM1602SMY12B
Rating: 4.7 (194 reviews)

Brand Name:	LCD Mall
Model Number:	LM1602SMY12B
MOQ:	500pcs
Price:	Negotiation
Delivery Time:	2~4 weeks
Payment Terms:	T/T;Western Union;Paypal;L/C

Detail Information

Product Description

Detail Information

Place of Origin:

GUA,CN

Certification:

CE ISO9001 ROHS

Type:

COB LCM

Interface:

8-Bit Parallel Interface

Viewing Direction:

6 O'clck

Viewing Area:

64.6(W) *14.6(H)mm

Module Dimension:

80.0(W) * 36.0(H) *12.0(Max)(T)

Pin:

16 Pin

Backlight Type:

LED, YELLOW GREEN

Brand:

LCD Mall

Packaging Details:

International standard export packing

Supply Ability:

100000pcs/month

Highlight:

8 Bit Parallel Interface COB LCD Module

16 Pin lcd cob 16*2 DOTS

8 Bit Parallel Interface lcd cob

Product Description

Standard monochrome COB 1602 character lcd Module STN/Yellow Green/Positive/Transmissive 1602 monochrome COB lcd display

PRODUCT DESCRIPTION

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 0

Standard monochrome COB 1602 character lcd Module STN/Yellow Green/Positive/Transmissive 1602 monochrome COB lcd display

Model	LM1602SMY12B
LCD type	COB LCM
Interface	8-Bit Parallel Interface
Dimension	201.8137.87.55mm
Display mode	16*2 DOTS
Viewing Area	64.6(W) *14.6(H)mm

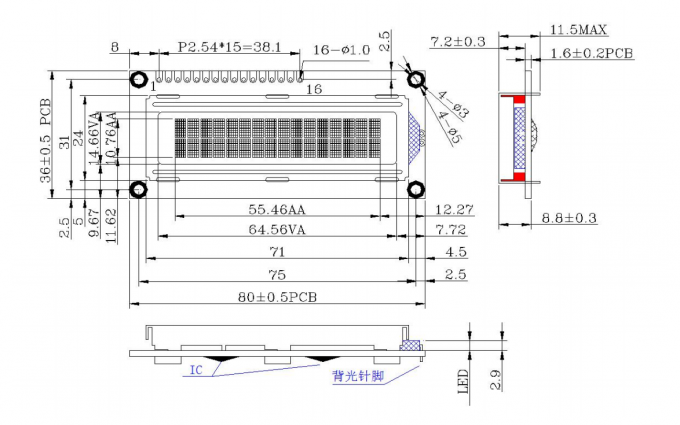

Module Dimension	80.0(W) * 36.0(H) *12.0(Max)(T)
Viewing Direction	6 O'clock
Brand	LCD Mall
Polarizer Mode	Transmissive

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 1

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 2

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 3

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 6

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 7

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 8

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 9

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 10

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 11

LCD Mall 16 Pin COB LCD Module 16*2 DOTS 8 Bit Parallel Interface 12
