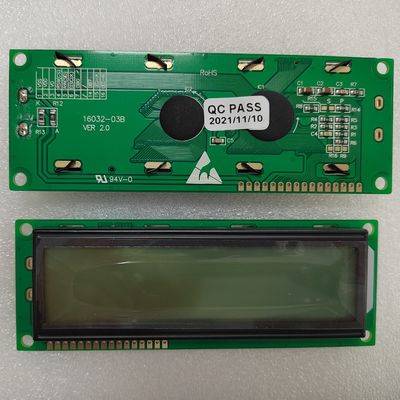

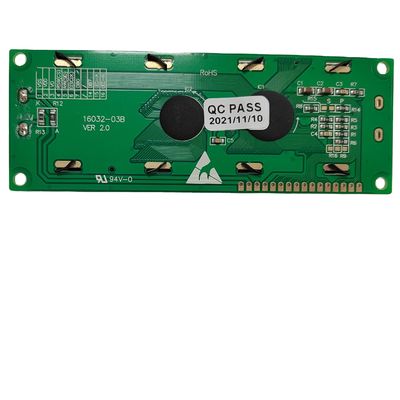

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE

Brand Name:	LCD Mall
MOQ:	500pcs
Delivery Time:	2~4 weeks
Payment Terms:	T/T;Western Union;Paypal;L/C

Detail Information

Product Description

Detail Information

Place of Origin:

GUA,CN

Certification:

CE ISO9001 ROHS

Type:

COB

Display Size:

160*32

Supplier Type:

Manufacture

Resolution:

160*32

Interface:

MPU

Active Area:

94.36*19.16

Backlight:

White LED

Driver IC:

ST7920-0B

Warranty:

1 Year

Storage Temperature:

-30C~+80C

Operating Temperature:

-20C~+70C

Viewing Angle:

12 O'clock

Port:

Shenzhen

Packaging Details:

International standard export packing

Supply Ability:

100000pcs/month

Highlight:

COB LCD Module 160*32 FSTN

,

8BIT bus MPU interface COB LCD Module

,

COB LCD 160*32 POSITIVE

Product Description

Standard Mono LCD Module COB 160*32 FSTN/POSITIVE/TRANSFLECTIVE 8BIT bus MPU interface

TFT LCD

Product Description

Product Description
Brand Name	LCD MAll
Size	16032
Type	Standard Mono COB
Resolution	160*32
OD area	122MM(L) × 44MM(w)
AA area	94.36MM(L) × 19.16MM(W)
Interface	MPU
Brightness	SIDE WHITE
Operating Temp	-20 °C~+ 70 °C
Storage Temp	-30 °C~+ 80 °C

Company Information

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE 0

Our tft lcd display are widely used on infrared thermometer, coffee machine, treadmill, industrial control, elevator, stereo system, car in-dash board videao door bell etc.

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE 1

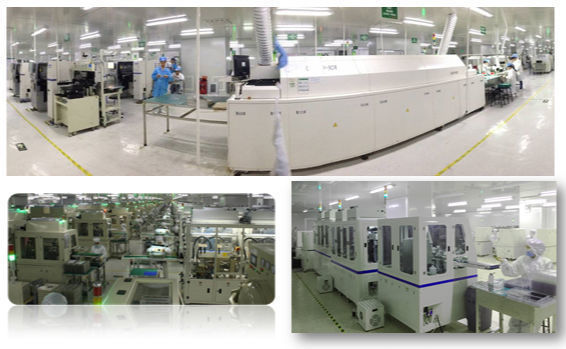

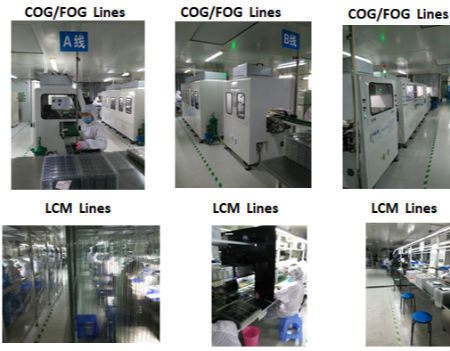

Our Work shop, the total factory area reaches 6,000M*M

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE 2

Factory Staff:300

Production Line: Total 10 lines

3 Automatic COG/FOG bonding Production Lines

2 Semi-Automatic Production Lines

3 Backlight assembly lines

2 Capacitive touch panel assembly line

8BIT Bus MPU Interface COB LCD Module 160*32 FSTN / POSITIVE / TRANSFLECTIVE 3

Our Services

1. Professional team (Nearly 20years experiences)

2. One-top service (from design, manufacture to after-sale service).

3. Complete production line (80% applied to automation).

4. Quality assurance (FCC, CE, RoHS, REACH).

5. Management (ISO9001:2008, SGS)

6. Support customization (Driver boards for AV,VGA,MCU and other interfaces, support LCD screen of different sizes and resolutions)
